Lodronic Low-Temperature Hydronic Unit Heater

Lodronic Low-Temperature Hydronic Unit Heater (Models HCH and BCH)

Unlike other hydronic unit heaters on the market the Lodronic™ low-temperature hot water unit heater was designed and engineered specifically for use with high-efficiency boilers.

The typical oversized hydronic unit heater overworks the high-efficiency boiler system resulting in poor system performance and lower temperature output.

By using the Lodronic™ hydronic unit heater with the high-efficiency boiler system, there will be a significant performance improvement when compared to standard hydronic unit heaters.

Experience significant performance improvements with Lodronic*

50% less electric use
35% higher discharge temperature
30% smaller footprint
2.5 x quieter operation
15% lighter

* Compared to HC165

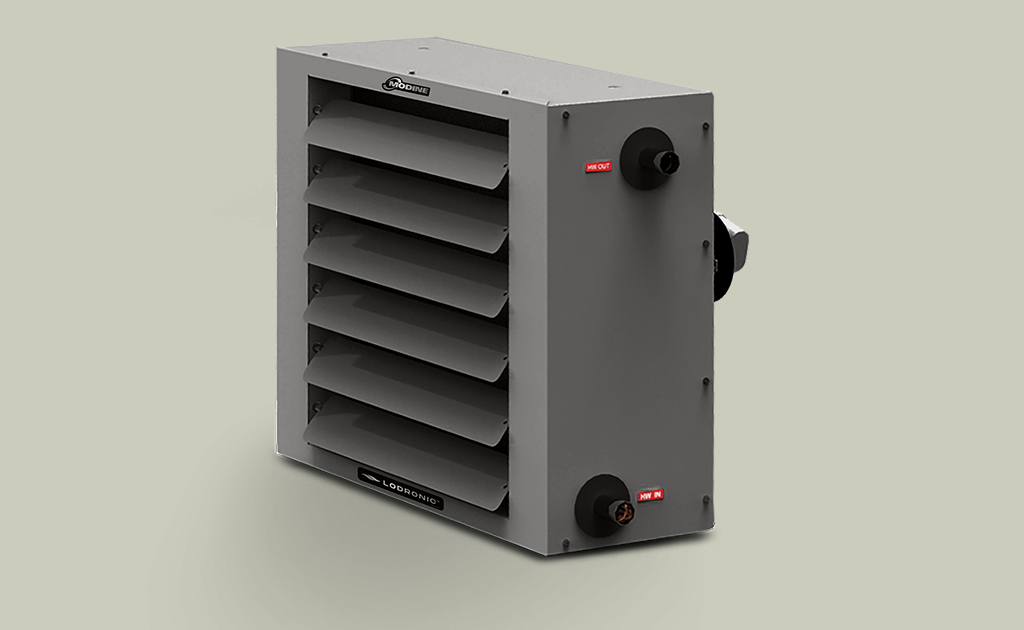

Modine Lodronic Low Temp Hot Water Unit Heater

Product Page – Applications – HCH – 800×492

Models

Model HCH– Horizontal High Efficiency Delivery with Propeller Fan
6 Model Sizes: 22, 39, 67, 104, 170, and 195 MBH

Model BCH – Horizontal High Efficiency Delivery with Blower
2 Model Sizes: 103 and 218 MBH

Features & Benefits:

Model HCH (propeller): 22k to 195k BTU/hr; 370 to 3200 CFM
Model BCH (blower): 103 and 218 BTU/hr; 1780 and 3718 CFM
Voltages: 115V, 208V, 230V (single-phase); 208V, 230V, 460V, 575V (3-phase)
Smaller fan and motor for a lower system amp draw
Designed for lower entering hot water temperatures
High-Temperature output vs old traditional systems
UL1995 Certified

Ideal Commercial Applications –

Warehouses
Industrial Buildings
Mechanical Rooms
Manufacturing Plants
Entryways
Ideal Residential Applications
Garages
Work Rooms

Options & Accessories:

Vertical Deflector Blades
60 Deg and 90 Deg Deflector Hoods
Drain Pan
Aquastat
Pipe Hanger Adapter Kit
